Pneumatic Knife Gate Valve Manufacturer in India
Engineered Valve + Pneumatic Actuation + Automation Packages
Fluidtecq™ manufactures pneumatic knife gate valves for automated isolation in demanding industrial applications.
Unlike a standard knife gate valve fitted with an actuator as an afterthought, a pneumatic knife gate valve must be engineered as a complete operating assembly. Valve size and construction, gate movement, required operating force, pneumatic cylinder sizing, available air pressure, cycle frequency, fail position and control accessories all influence reliable operation.
Fluidtecq brings together its experience in Knife Gate Valves, pneumatic cylinders and industrial automation to engineer complete assemblies for ash handling, dry powders, pulp and paper, wastewater, bulk material handling and other process applications.
Fluidtecq manufactures high-performance, heavy-duty knife edge gate valves engineered for the most demanding isolation requirements. Designed to handle highly abrasive media, dense slurries, dry powders, and volatile fluids, our knife gate valves deliver zero-leakage isolation across severe-service industrial applications.
Whether your pipeline demands precise pneumatic automation or reliable manual operation, our engineering team custom-builds valve configurations to your exact dimensional and material specifications.
What is a Pneumatic Knife Gate Valve?
A pneumatic knife gate valve is a linear-motion isolation valve in which compressed air operates a pneumatic cylinder to move the gate between its open and closed positions.
The pneumatic cylinder replaces manual handwheel operation and allows the valve to be integrated into automated plant operations.
Pneumatic actuation is particularly useful where:
- valves operate frequently;
- remote operation is required;
- manual access is difficult;
- multiple valves form part of an automated sequence;
- rapid and repeatable operation is desirable; or
- a defined fail-open or fail-close philosophy is required.
Important: Knife gate valves are primarily intended for isolation — fully open or fully closed operation — rather than normal throttling service.
Why a Pneumatic Knife Gate Valve?
For many industrial processes, selecting the valve is only half the engineering decision.
The valve must also open and close reliably against the actual process conditions.
A correctly engineered pneumatic operating system can provide:
Remote Operation
Operate valves from a control panel, PLC/DCS system or suitable field control arrangement without requiring manual operation at the valve.
Repeatable Cycling
Pneumatic cylinders provide positive linear movement suitable for repeated open-close operation.
Fail-Safe Possibilities
Where the application requires it, the pneumatic system can be engineered around an appropriate fail-close or fail-open philosophy, subject to valve size, operating conditions and actuator configuration.
Automation Integration
Solenoid valves, limit switches, position indication and other accessories can be incorporated into the assembly.
Suitable for Difficult Locations
Pneumatic actuation can reduce dependence on operator access around elevated, confined or difficult valve locations.
The Fluidtecq Pneumatic Automation Advantage:
More Than a Valve with a Cylinder Attached
Reliable automation requires the valve and actuator to be considered as one system.
Fluidtecq can engineer the Knife Gate Valve together with its pneumatic operating and control requirements, including:
Knife Gate Valve
Selected according to size, media, pressure, temperature, flow direction and required sealing arrangement.
Pneumatic Cylinder
Sized according to the force required to operate the gate under the specified conditions.
Solenoid Valve
Selected according to the cylinder configuration and required control philosophy.
Air Filter Regulator (AFR)
For suitable air preparation and pressure regulation where required.
Limit Switch / Limit Switch Box
For open/closed position indication and control-system feedback.
Positioner / Position Feedback
Where the particular automation architecture requires additional position information.
Junction Box / Control Panel
Can be considered as part of the project-specific automation requirement.
Pneumatic Cylinder Configurations
Double-Acting Pneumatic Knife Gate Valve
Compressed air is supplied alternately to either side of the cylinder piston to positively drive the gate in both directions.
Double-acting arrangements are commonly considered where controlled pneumatic opening and closing are required.
Single-Acting / Spring-Return Configuration
Where a defined fail position is required, an appropriate spring-return pneumatic arrangement can be considered subject to the valve size, required operating force, available installation space and application conditions.
The final actuator arrangement should therefore be selected from the actual operating requirement, not merely from the nominal valve size.
Pneumatic Cylinder Sizing Matters
This is a section I definitely want on the new page because it separates Fluidtecq from catalogue sellers.
A Bigger Cylinder Is Not Automatically a Better Cylinder
Correct actuator sizing requires consideration of the force needed to move the gate reliably under actual operating conditions.
Engineering inputs can include:
- Valve size
- Differential pressure
- Gate and seat configuration
- Process media
- Expected material build-up
- Frictional resistance
- Required operating speed
- Available pneumatic pressure
- Fail-safe requirement
- Cycle frequency
- Installation orientation
- Appropriate operating margin
An undersized actuator may not generate sufficient force under demanding conditions. Oversizing without considering the complete system can unnecessarily increase air consumption, dimensions and component loads.
Fluidtecq therefore recommends actuator selection against the application rather than valve diameter alone.
Pneumatic Knife Gate Valve Configurations
Pneumatic Unidirectional Knife Gate Valve
Designed for applications where the valve is intended to seal against pressure from a defined direction.
Typical considerations: process direction, seat arrangement, pressure and media characteristics.
Pneumatic Bidirectional Knife Gate Valve
Selected where the application requires sealing capability with pressure potentially acting from either direction.
Typical considerations: pressure direction, seat design, operating conditions and cycling requirements.
Pneumatic Bonneted Knife Gate Valve
A bonneted construction can be considered where the process requires greater isolation of the gate and stem area from the surrounding environment.
Typical considerations: media characteristics, containment requirements, operating conditions and automation.
Custom Pneumatic Knife Gate Valve Assemblies
For installations involving unusual dimensions, restricted operating space, special mounting requirements or project-specific automation, Fluidtecq can engineer customized valve and pneumatic actuator arrangements.
Limited Overhead Space?
This deserves its own section because Fluidtecq already has a very good technical article on exactly this problem.
Side-Mounted Pneumatic Knife Gate Valve Solutions
A conventional pneumatic Knife Gate Valve can require considerable vertical clearance because the valve body, gate travel, yoke and pneumatic cylinder are arranged along the same vertical axis.
Where structural beams, overhead piping or restricted plant height prevent a conventional arrangement, Fluidtecq can evaluate side-mounted or customized pneumatic operating arrangements.
Fluidtecq already has a dedicated article explaining this engineering problem and its compact side-mounted solution.
Explore Side-Mounted Pneumatic Knife Gate Valve Solutions →
Fluidtecq Knife Gate Valve Range by Application
1. Unidirectional Knife Gate Valves
Best For: Paper pulp, wastewater, chemical processing, and general fluid isolation where flow
pressure travels in a single direction.
Design Feature: Features a sharp, precision-ground stainless steel gate that cuts cleanly
through thick media and seals tightly against a resilient or metal seat on the downstream side.
2. Bi-Directional Knife Gate Valves
Best For: Dual-flow pressure lines, municipal sewage, sludge handling, and systems subject to backflo
Design Feature: Engineered with a specialized seat design that ensures absolute,
drop-tight sealing regardless of which direction the line pressure is coming from.
3. Slurry & Fly Ash Severe-Service Valves
Best For: Thermal power plants, steel manufacturing, cement factories, and mining tailings.
Design Feature: Built with thick, replaceable polyurethane or natural rubber liners
and a hardened, Stellited gate edge to withstand extreme abrasion from bed ash, bottom ash, and mineral slurries.
4. Bonneted Knife Gate Valves
Best For: Volatile chemical lines, hazardous gases, vacuum applications, and pharma sectors.
Design Feature: The gate is completely enclosed within a pressure-tight, sealed bonnet.
This ensures zero fugitive emissions to the atmosphere and maintains structural vacuum integrity.

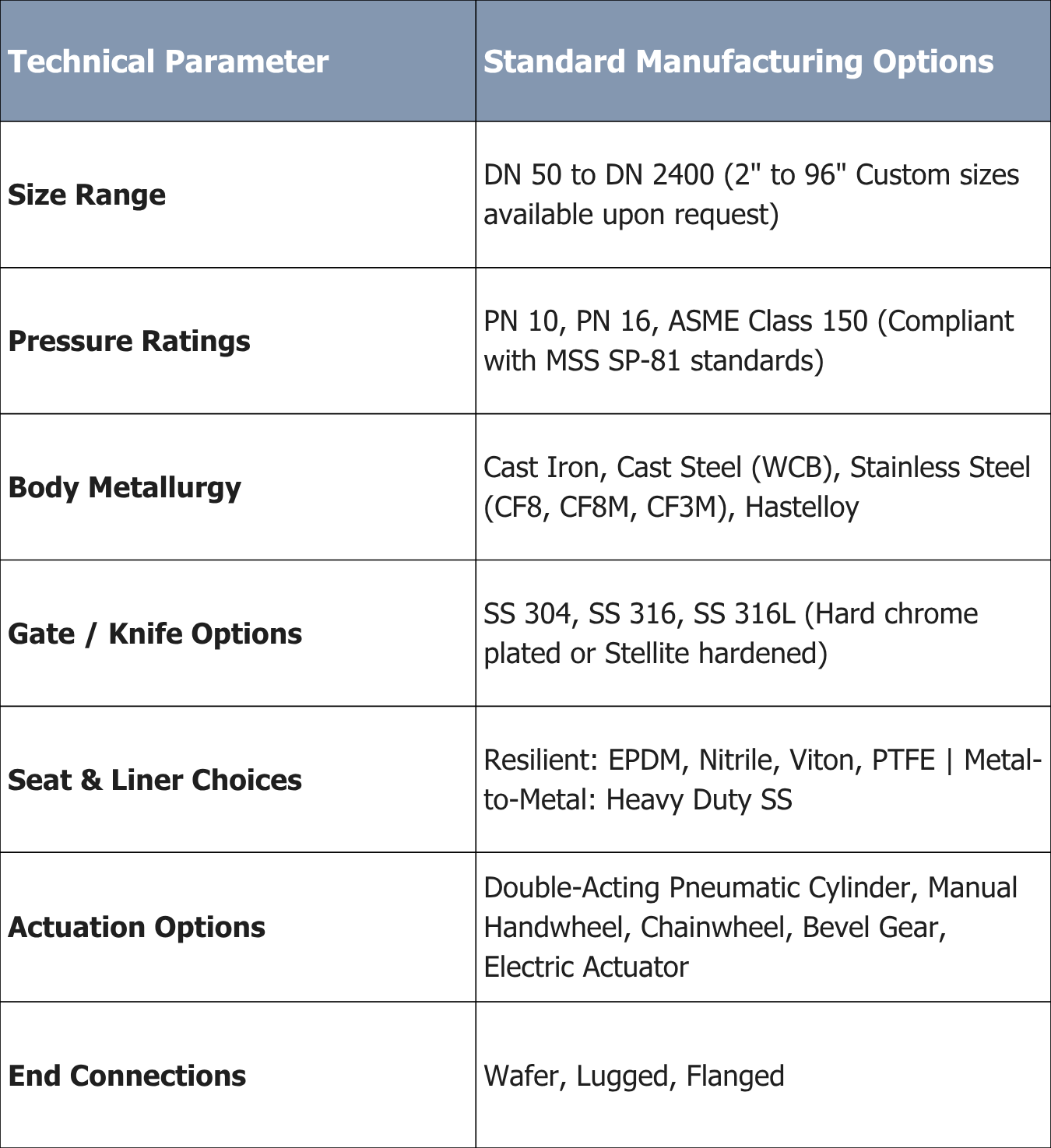

Technical Specifications & Manufacturing Standards
Every Fluidtecq valve undergoes strict pressure testing to ensure uncompromising field reliability. Review our standard engineering matrix below:
Built for Demanding B2B Industrial Sectors
Fluidtecq valves are field-proven across rigorous operating environments:
Power & Steel Plants: Dependable, jam-free handling of dry fly ash, pneumatic conveying lines, and slag.
Wastewater Treatment: High-efficiency management of thick municipal sludge, grit chambers, and raw sewage.
Pulp & Paper: Smooth slicing through high-consistency paper pulp stock and wood chips without clogging.
Mining & Minerals: Exceptional wear life when regulating abrasive iron ore, coal wash, and copper tailings.
Information Required for Selection
Send Us More Than Just the Valve Size
For a technically appropriate proposal, provide as much of the following information as possible:
- Valve size / NB
- Process media
- Operating pressure
- Operating temperature
- Flow direction
- Required body material
- Preferred gate material, if specified
- Seat requirement
- Available instrument-air pressure
- Double acting / fail open / fail close requirement
- Expected operating frequency
- Solenoid valve requirement
- Limit switch / position feedback requirement
- Hazardous-area requirement, if applicable
- Available installation space
- Quantity
- Relevant drawing or project specification
Not sure about the complete specification?
Send us your application details. Fluidtecq can help configure the valve and pneumatic automation package around the operating requirement.
Why Fluidtecq?
Valve Engineering + Pneumatics + Automation
Fluidtecq's advantage is not simply the availability of pneumatic actuation.
It is the ability to consider the Knife Gate Valve, pneumatic cylinder and associated automation as an integrated assembly.
From its manufacturing facility at Ambernath, Maharashtra, Fluidtecq supplies industrial valve and automation solutions for customers across India and project/export requirements. The company's current site identifies 35+ years of manufacturing experience and ISO 9001:2015 certification.
Application Engineering
Valve selection around actual process requirements.
Pneumatic Cylinder Capability
Cylinder configuration and sizing around the required operating force.
Automation Integration
Solenoid valves, sensing and control accessories incorporated according to the project.
Customization
Special constructions and operating arrangements can be evaluated where standard configurations do not suit the installation.
Engineering Support
Work with OEMs, EPCs, consultants, plant engineering and maintenance teams from specification through supply.
Frequently Asked Questions
What is a pneumatic Knife Gate Valve?
It is a Knife Gate Valve operated by a pneumatic cylinder using compressed air rather than manual handwheel operation. Pneumatic actuation enables remote and automated open/close operation.
What information is required to size the pneumatic cylinder?
Valve size alone is not sufficient. Process pressure, media, valve construction, seat arrangement, available air pressure, operating orientation, cycle requirement and required fail position can influence actuator selection.
Should I use a double-acting or single-acting pneumatic cylinder?
The choice depends on the required operating philosophy. Double-acting cylinders use pneumatic pressure for both directions, while suitable spring-return arrangements can provide a defined fail position. Fluidtecq can recommend the configuration from the application requirement.
Can Fluidtecq provide a complete automation package?
Yes. Fluidtecq's current offering includes pneumatic actuation together with associated components such as solenoid valves and limit-switch arrangements.
Can a pneumatic Knife Gate Valve be used for throttling?
Knife Gate Valves should normally be selected for open/close isolation, not routine throttling. Partial opening can expose the gate and seating components to undesirable velocity and wear.
Can you supply side-mounted pneumatic cylinders?
Where conventional vertical actuator clearance is restricted, Fluidtecq can evaluate customized/side-mounted arrangements according to the valve and installation requirements.
Which seat material should I select?
Seat selection depends on the process media, temperature, pressure, sealing requirement and chemical compatibility. Send Fluidtecq your application conditions for appropriate selection.
Can pneumatic Knife Gate Valves be supplied with position indication?
Suitable limit switches, limit-switch boxes or position-feedback arrangements can be incorporated according to the automation requirement
A Trusted Manufacturer with PAN INDIA Support
Our state-of-the-art manufacturing facility and Head Office are located in Ambernath, Thane (Mumbai Metropolitan Region) . We maintain an extensive inventory to ensure fast delivery and support across India, including Pune, Gujarat, Nagpur, and Hyderabad.
Seamless Automation Integration
Actuation Options | Our Knife Gate Valves are available with: Manual: Handwheel, Chain Wheel, Gear. Automated: Pneumatic Cylinder (Single/Double Acting), Hydraulic, or Electric Actuator. |
FLUIDTECQ Automation Advantage | We also manufacture the associated pneumatic control elements, ensuring perfect compatibility and seamless integration: • Solenoid Valves (2/2, 3/2, 4/2, 5/2 Way) • Limit Switch Boxes (General purpose or Flameproof as per IS 2148-1981, Group II A and IIB). |
Why Choose FLUIDTECQ? (36 Years of Excellence)
35+ years of manufacturing expertise. • ISO 9001:2015 certified company. • Dedicated PAN INDIA presence with factory & HO in Ambernath,
Dist: Thane, MH. • INDIA
REQUEST QUOTE: Get Custom Pricing & Technical Drawings
